精密微型軸承

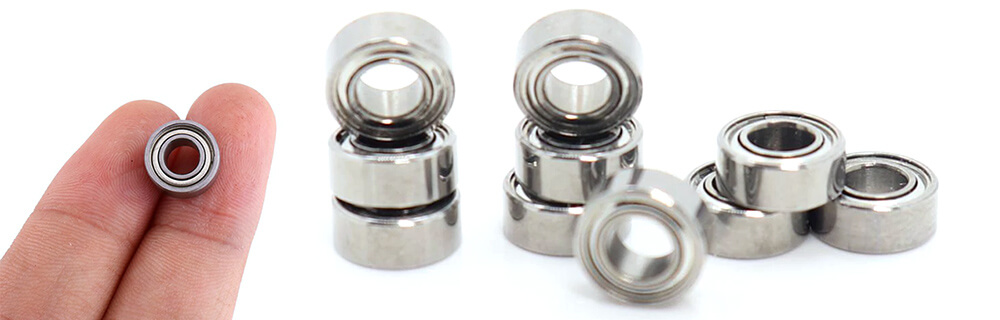

微小軸承內徑 1.5mm ~ 9mm 用途廣泛如精密傳動用途及一般傳動使用。微小軸承應用電子器材、散熱風扇、搖控模型、微型電機、手推車運動器材、輸送機、木工刀具、傳動輪等。袖珍軸承具有輕量化之特色用途廣泛、微型滾珠軸承(公制尺寸、英制尺寸)、開放式、帶防塵蓋型及凸緣(法蘭型)等。

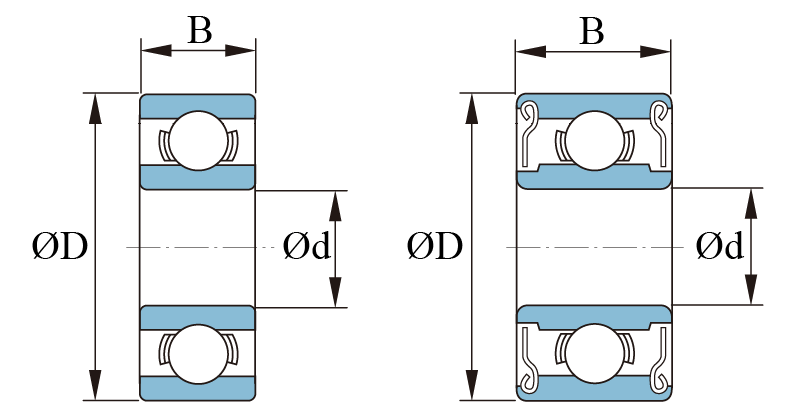

精密微型軸承規格表

d	D	B		NSK/ISC	NMB	NTN
d	D	(無蓋厚度)開放型	(雙蓋厚度)防塵蓋型 ZZ	NSK/ISC	NMB	NTN
1	3	1	-	681	L-310
	3	1.5	-	MR31	L-310W51
	4	1.6	-	691	R-410	691
1.2	4	1.8	2.5	MR41XZZ	R-412
1.5	4	1.2	2	681XZZ	L-415
	5	2	2.6	691XZZ	R-515	69/1.5
	6	2.5	3	601XZZ	R-615	60/1.5
2	5	1.5	2.3	682ZZ	L-520	682
	5	2	2.5	MR52ZZ	L-520W02	BC2-5
	6	2.3	3	692ZZ	R-620	692
	6	2.5	2.5	MR62ZZ	R-620Y25	BC2-6
	7	2.5	3	MR72ZZ	R-720	BC2-7
	7	2.8	3.5	602ZZS	R-720X	602
2.5	6	1.8	2.6	682XZZ	L-625	68/2.5
	7	2.5	3.5	692XZZ	R-725	69/2.5
	8	2.5	-	-
	8	2.8	4	602XZZ	R-825X	60/2.5
3	6	2	2.5	MR63ZZ	L-630	673
	7	2	3	683ZZ	L-730	683
	8	2.5	3	MR83ZZ	BC3-8	R-830
	8	3	4	693ZZ	R-830X	693
	9	2.5	4	MR93ZZ	R-930Y04	BC3-9
	9	3	5	603ZZ	R-930X	603
	10	4	4	623ZZ	R-1030	623
	13	5	5	633ZZ		633
4	7	2	-	-
	7	2	2.5	MR74ZZ	L-740	674
	8	2	3	MR84ZZ	L-840	BC4-8
	9	1.5	4	684ZZ	L-940
	10	3	4	MR104ZZ	L-1040	BC4-10
	11	4	4	694ZZ	R-1140	694
	12	4	4	604ZZ	R-1240	604
	13	5	5	624ZZ	R-1320	624
	16	5	5	634ZZ	R-1640	634
5	8	2	2.5	MR85ZZ	L-850	675
	9	2.5	3	MR95ZZ	L-950	BC5-9
	10	3	4	MR105ZZ	L-1050	BC5-10
	11	-	4	MR115ZZ	L-1150Y04	BC5-11
	11	3	5	685ZZ	L-1150	685
	13	4	4	695ZZ	R-1350	695
	14	5	5	605ZZ	R-1450	605
	16	5	5	625ZZ	R-1650	625
	19	6	6	635ZZ	R-1950	635
6	10	2.5	3	MR106ZZ	L-1060	676
	12	3	4	MR126ZZ	L-1260	BC6-12
	13	3.5	5	686ZZ	L-1360	686
	15	5	5	696ZZ	R-1560	696
	17	6	6	606ZZ	R-1760	606
	19	6	6	626ZZ	R-1960	626
	22	7	7	636ZZ		636
7	11	2.5	3	MR117ZZ	L-1170	677
	13	3	4	MR137ZZ	L-1370	BC7-13
	14	3.5	5	687ZZ	L-1470	687
	17	5	5	697ZZ	L-1770	697
7	11	2.5	3	MR117ZZ	L-1170	677
	13	3	4	MR137ZZ	L-1370	BC7-13
	14	3.5	5	687ZZ	L-1470	687
	17	5	5	697ZZ	L-1770	697
8	12	2.5	3.5	MR128	L-1280(678)	-
	14	3.5	4	MR148	L-1480	-
	14	-	3.5	MR148ZZW3.5	-	-
	16	4	5	688	L-1680	-
	16	-	6	688/6	-	-
	16	-	4	688ZZW4	-	-
	19	6	6	698	R-1980	-
	22	7	7	608	R-2280	-
	24	8	8	628	R-2480	-
	28	9	9	638	-	-
9	14	3	4.5	679	-	-
	17	4	5	689	L-1790	-
	17	-	4	689ZZW4	-	-
	20	6	6	699	L-2090	-
	24	7	7	609	R-2490	-
	26	8	8	629	R-2690	-
	30	10	10	639		-
10	19	7	7	63800	L-1910	-
12	21	7	7	63801	-	-
15	24	7	7	63802	-	-
17	26	7	7	63803	-	-
20	32	10	10	63804	-	-
25	37	10	10	63805	-	-
30	42	10	10	63806	-	-

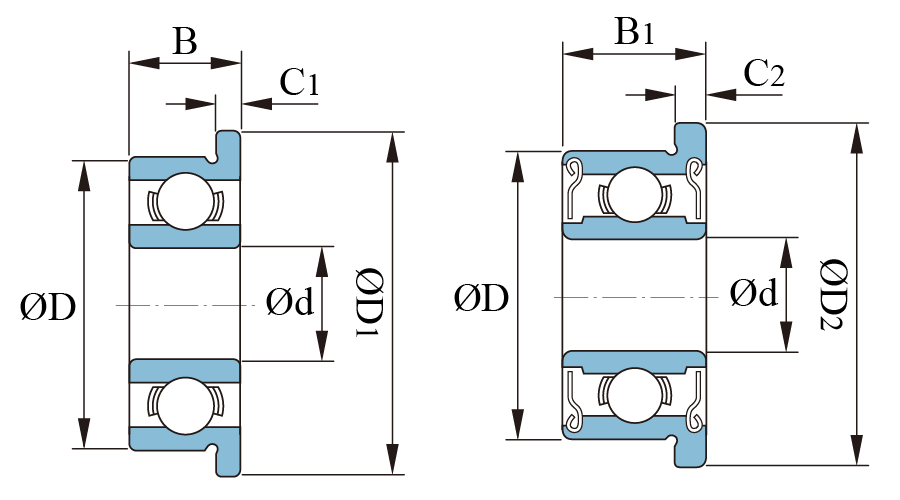

法蘭型微型軸承規格表

內徑 d	外徑 D	(無蓋厚度)開放型 B	(雙蓋厚度)防塵蓋型 B1	EZO、IJK	NMB
1	3	1	-	F681	LF-301
1	4	1.6	-	F691	RF-401
1.2	4	1.8	2.5	MF41X	RF-412
1.5	4	1.2	2	F681X	LF-415
1.5	5	2	2.6	F691X	RF-515
1.5	5	-	2	F691XZZW2	-
1.5	6	2.5	3	F601X	RF-615
1.5	6	-	2.5	F601XZZW2.5	-
2	5	1.5	2.3	F682	LF-520
2	5	2	2.5	MF52	LF-520(W02)
2	6	2.3	3	F692	RF-620
2	6	-	2.3	F692ZZW2.3	-
2	6	2.5	-	MF62	RF-620(W52)
2	7	2.5	3	MF72	RF-720(Y52)
2	7	-	2.5	MF72ZZW2.5	-
2	7	2.8	3.5	F602	RF--20
2	7	-	2.8	F602ZZW2.8	-
2.5	6	1.8	2.6	F682X	LF-625
2.5	7	2.5	3.5	F692X	RF-725
2.5	7	-	2.5	F692XZZW2.5	-
2.5	8	2.5	2.5	MF82X	RF-825(Y52)
2.5	8	2.8	4	F602X	RF-825
2.5	8	-	2.8	F602XZZW2.8	-
3	6	2	2.5	MF63	LF-630(F673)
3	7	2	2.5	F683	LF-730
3	8	2.5	2.5	MF83	RF-830(Y52)
3	8	-	2.5	MF83ZZW2.5	-
3	8	3	2.5	F693	RF-830
3	8	-	2.5	F693ZZW3	-
3	9	2.5	2.5	MF93	RF-930(Y52)
3	9	-	2.5	MF93ZZW2.5	-
3	9	3	2.5	F603	RF-930
3	9	-	2.5	F603ZZW3	-
3	10	4	2.5	F623	RF-1030
4	7	2	2.5	MF74	LF-740(F674)
4	8	2	3	MF84	LF-740
4	9	2.5	4	F684	LF-740
4	9	-	2.5	F684ZZW2.5	LF-740
4	10	3	4	MF104	LF-740
4	10	-	3	MF104ZZW3	-
4	11	4	4	F694	RF-1140
4	12	4	4	F604	RF-1240
4	13	5	5	F624	RF-1340
4	16	5	5	F634	RF-1640
5	8	2	2.5	MF85	LF-850(F675)
5	9	2.5	3	MF95	LF-950
5	9	-	2.5	MF95ZZW2.5	-
5	10	3	4	MF105	LF-1050
5	10	-	3	MF105ZZW3	-
5	11	-	4	MF115	LF-1150(W04)
5	11	3	5	F685	LF-1150
5	11	-	3	F685ZZW3	-
5	13	4	4	F695	RF-1350
5	13	-	5	F685(W05)	RF-1350(W05)
5	14	5	5	F605	RF-1450
5	16	5	5	F625	RF-1650
5	19	6	6	F635	RF-1950
6	10	2.5	3	MF106	LF-1060(F676)
6	12	3	4	MF126	LF-1260
6	12	-	3	MF126ZZW3	-
6	13	3.5	5	F686	LF-1360
6	13	-	3.5	F686ZZW3.5	-
6	15	5	5	F696	RF-1560
6	17	6	6	F606	RF-1760
6	19	6	6	F626	RF-1960
7	11	2.5	3	MF117	LF-1170(F677)
7	13	3	4	MF137	LF-1370
7	13	-	3	MF137ZZW3	-
7	14	3.5	5	F687	LF-1470
7	14	-	3.5	F687ZZW3.5	-
7	17	5	5	F697	LF-1770
7	19	6	6	F607	RF-1970
7	22	7	7	F627	RF-2270
8	12	2.5	3.5	MF128	LF-1280
8	14	3.5	4	MF148	LF-1480
8	14	-	3.5	MF148ZZW3.5	-
8	16	4	5	F688	LF-1680
8	16	-	6	F688/6	-
8	19	-	4	F688ZZW4	-
8	19	6	6	F698	RF-1980
8	22	7	7	F608	RF-2280
9	14	3	4.5	F679	-
9	17	4	5	F669	LF-1790
9	20	6	6	F699	LF-2090
9	24	7	7	F609	RF-2490
10	19	7	7	F36800	LF-1910
12	21	7	7	F36801	-
15	24	7	7	F36802	-
17	26	7	7	F36803	-
20	32	10	10	F36804	-
25	37	10	10	F36805	-
30	42	10	10	F36806	-

d	D	B		NSK/ISC	NMB
d	D	(無蓋厚度)開放型	(雙蓋厚度)防塵蓋型 ZZ	NSK/ISC	NMB
1.016	3.175	1.191	-	R09	R1-2
1.191	3.967	1.588	2.380	R0ZZ	R1-2 1/2 ZZ
1.397	4.762	1.984	2.779	R1ZZ	R1-3ZZ
1.984	6.350	2.380	3.571	R1-4ZZS	R1-4ZZ
2.380	4.762	1.588	-	-
	4.762	-	2.380	R133ZZS	RI-333ZZ
	7.938	2.779	3.571	R1-5ZZS	RI-5ZZ
3.175	6.350	2.380	2.779	R144JZZS
	6.350	2.380	2.779	R144ZZS	RI-418ZZ
	7.938	2.779	3.571	R2-5ZZ	RI-518ZZ
	9.525	2.779	3.571	R2-6ZZ	RI-618ZZ
	9.525	3.967	3.967	R2ZZ	R2ZZ
	12.700	4.366	4.366	R2AZZ
3.967	7.938	2.779	3.175	R155ZZS	RI-5532ZZ
4.762	7.938	2.779	3.175	R156ZZS	RI-5632ZZ
	9.525	3.175	3.175	R166ZZ	RI-6632ZZ
	12.700	3.967	4.978	R3ZZ	R3ZZ
	15.875	4.975	4.978	R3AZZ
6.350	9.525	3.176	3.175	R168ZZS	RI-614ZZ
	12.700	3.175	4.762	R188ZZ	RI-814X3ZZ
	15.875	4.978	4.978	R4ZZ	R4ZZ
	19.050	5.558	7.142	R4AZZ
7.938	12.700	3.967	3.967	R1810ZZS	RI-8516ZZ
9.525	22.225	5.588	7.142	R6ZZ	RI-1438ZZ
12.700	28.575	6.350	7.938	R8ZZ	RI-1812ZZ
15.875	34.925	7.142	8.733	R10ZZ
19.050	41.275	7.938	11.113	R12ZZ
