首頁產品總覽螺絲套筒・套筒華司

螺絲套筒


產品型號 : H2

型號d1L
mm
D3
mm
C
mm
鎖緊螺母
Lock Nuts
套筒華司
Lock Washers
重量
kg
H
mm
HE
in
HS
in
HA
in
H20417---24327AN04AW040.041
H205203/47/813/1626388AN05AW050.070
H2062517/815/1627458AN06AW060.099
H207301 1/41 1/81 3/1629529AN07AW070.125
H208351 1/41 3/81 5/16315810AN08AW080.174
H209401 1/21 5/81 7/16336511AN09AW090.227
H210451 3/41 5/81 11/16357012AN10AW100.274
H2115021 7/81 15/16377512AN11AW110.308
H212552 1/42 1/82 1/16388013AN12AW120.346
H213602 1/42 3/82 3/16408514AN13AW130.401
H214602 1/4-2 5/16419214AN14AW140.593
H215652 1/22 5/82 7/16439815AN15AW150.707
H216702 3/42 7/82 11/164610517AN16AW160.882
H217753-2 15/165011018AN17AW171.020
H218803 1/43 1/83 3/165212018AN18AW181.190
H219853 1/4-3 5/165512519AN19AW191.370
H220903 1/2-3 7/165813020AN20AW201.490
H22195---6014020AN21AW211.720
H2221004-3 15/166314521AN22AW221.930

整組緊定套附螺母及華司或鎖定片

規格表中套筒內徑規格為 HE 為 HE205

規格表中套筒內徑規格為 HS 為 HS205

規格表中套筒內徑規格為 HA 為 HA206



產品型號 : H3

型號d1L

mm
D3

mm
C

mm
鎖緊螺母
Lock Nuts
套筒華司
Lock Washers
重量
kg
H
mm
HE
in
HS
in
HA
in
H30417---28327AN04AW040.045
H305203/47/8-29388AN05AW050.075
H3062517/815/1631458AN06AW060.109
H307301 1/41 1/81 3/1635529AN07AW070.142
H308351 1/41 3/81 5/16365810AN08AW080.189
H309401 1/21 5/81 7/16396511AN09AW090.248
H310451 3/41 5/81 11/16427012AN10AW100.303
H3115021 7/81 15/16457512AN11AW110.345
H312552 1/42 1/82 1/16478013AN12AW120.394
H313602 1/42 3/82 3/16508514AN13AW130.458
H314602 1/4--529214AN14AW140.723
H315652 1/22 5/82 7/16559815AN15AW150.831
H316702 3/42 7/82 11/165910517AN16AW161.03
H317753-2 15/166311018AN17AW171.180
H318803 1/43 1/83 3/166512018AN18AW181.370
H319853 1/4-3 5/166812519AN19AW191.560
H320903 1/2-3 7/167113020AN20AW201.690
H32195---7414020AN21AW211.950
H3221004-3 15/167714521AN22AW222.180

整組緊定套附螺母及華司或鎖定片

規格表中套筒內徑規格為 HE 為 HE305

規格表中套筒內徑規格為 HS 為 HS305

規格表中套筒內徑規格為 HA 為 HA306



產品型號 : H23(H2304~2326)

型號d1L

mm
D3

mm
C

mm
鎖緊螺母
Lock Nuts
套筒華司
Lock Washers
重量
kg
H
mm
HE
in
HS
in
HA
in
H230417---31327AN04AW040.049
H2305203/47/813/1635388AN05AW050.087
H23062517/815/1638458AN06AW060.126
H2307301 1/41 1/81 3/1643529AN07AW070.165
H2308351 1/41 3/81 5/16465810AN08AW080.224
H2309401 1/21 5/81 7/16506511AN09AW090.280
H2310451 3/41 5/81 11/16557012AN10AW100.362
H23115021 7/81 15/16597512AN11AW110.420
H2312552 1/42 1/82 1/16628013AN12AW120.481
H2313602 1/42 3/82 3/16658514AN13AW130.557
H2314602 1/4--689214AN14AW140.897
H2315652 1/22 5/82 7/16739815AN15AW151.050
H2316702 3/42 7/82 11/167810517AN16AW161.280
H2317753-2 15/168211018AN17AW171.450
H2318803 1/43 1/83 3/168612018AN18AW181.690
H2319853 1/4-3 5/169012519AN19AW191.920
H2320903 1/2-3 7/169713020AN20AW202.150
H232195---10114020AN21AW212.460
H23221004-3 15/1610514521AN22AW222.740
H23241104 1/4-4 3/1611215522AN24AN243.190
H23261154 1/2-4 7/1612116523AN26AN264.600

整組緊定套附螺母及華司或鎖定片

規格表中套筒內徑規格為 HE 為 HE2305

規格表中套筒內徑規格為 HS 為 HS2308

規格表中套筒內徑規格為 HA 為 HA2309

標示出 C1 尺寸套筒附鎖定裝置、尺寸參考規格圖



產品型號 : H23(H2328~2356)

型號d1L
mm
D3
mm
C
mm
C5)1
mm
鎖緊螺母
Lock Nuts
套筒華司
Lock Washers
重量
kg
H
mm
HE
in
HS
in
HA
in
H232812554 13/164 15/1613118024-AN28AW285.550
H23301355 1/4-5 3/1613919526-AN30AW306.630
H23321405 1/2-5 7/1614721028-AN32AW329.140
H23341506-5 15/1615422029-AN34AW3410.200
H23361606 1/2-6 7/1616123030-AN36AW3611.300
H23381706 3/4-6 15/1616924031-AN38AW3812.600
H23401807-7 3/1617625032-AN40AW4013.900
H234420087 7/87 15/161832803244AN44AL4416.700
H23482208 1/2-8 15/161963003446AN48AL4819.700
H23522409 1/2-9 7/162083303649AN52AL5224.200
H235626010 1/2-9 15/162213503851AN56AL5627.800

整組緊定套附螺母及華司或鎖定片

規格表中套筒內徑規格為 HE 為 HE2305

規格表中套筒內徑規格為 HS 為 HS2308

規格表中套筒內徑規格為 HA 為 HA2309

標示出 C1 尺寸套筒附鎖定裝置、尺寸參考規格圖



產品型號 : H30

型號d1L
mm
D3
mm
C
mm
C4)1
mm
鎖緊螺母
Lock Nuts
套筒華司
Lock Washers
and
Lock Plates
重量
kg
H
mm
HE
in
HS
in
H30241104 1/44 13/167214522-ANL24AWL241.930
H30261154 1/24 7/168015523-ANL26AWL262.850
H302812554 13/168216524-ANL28AWL283.160
H30301355 1/4-8718026-ANL30AWL303.890
H30321405 1/25 7/169319028-ANL32AWL325.210
H30341506-10120029-ANL34AWL345.990
H30361606 1/2-10921030-ANL36AWL366.830
H30381706 3/46 15/1611222031-ANL38AWL387.450
H30401807-12024032-ANL40AWL409.190
H304420087 7/81282603041ANL44AWL4410.300
H30482208 1/2-1332903446ANL48AWL4813.200
H30522409 1/2-1473103446ANL52AWL5215.300
H305626010 1/2-1523303850ANL56AWL5617.700
H3060280--1683604254ANL60AWL6022.800
H30643001211 15/161713804255ANL64AWL6424.600
H306832012 1/2-1874004558ANL68AWL6828.700
H3072340--1884204558ANL72AWL7230.500
H3076360--1934504862ANL76AWL7635.800
H3080380--2104705266ANL80AWL8041.300
H3084400--2124905266ANL84AWL8443.700
H3088410--2285206077ANL88AWL8865.200
H3092430--2345406077ANL92AWL9269.500
H3096450--2375606077ANL96AWL9673.300
H30/500470--2475806885ANL100AWL10081.800

整組緊定套附螺母及華司或鎖定片

規格表中套筒內徑規格為 HE 為 HE3024

規格表中套筒內徑規格為 HA 為 HA3024

標示出 C1 尺寸套筒附鎖定裝置、尺寸參考規格圖



產品型號 : H31

型號d1L
mm
D3
mm
C
mm
C4)1
mm
鎖緊螺母
Lock Nuts
套筒華司
Lock Washers
重量
kg
H
mm
HE
in
HS
in
H3120903 1/23 7/167613020-AN20AW201.800
H312210043 15/168114521-AN22AW222.250
H31241104 1/44 3/168815522-AN24AW242.640
H31261154 1/24 7/169216523-AN26AW263.660
H312812554 13/169718024-AN28AW284.340
H31301355 1/4-11119526-AN30AW305.520
H31321405 1/2-11921028-AN32AW327.670
H31341506-12222029-AN34AW348.380
H31361606 1/2-13123030-AN36AW369.500
H31381706 3/4-14124031-AN38AW3810.800
H314018077 3/1615025032-AN40AW4012.100
H314420087 7/81582803244AN44AL4414.700
H31482208 1/2-1693003446AN48AL4817.300
H31522409 1/2-1873303649AN52AL5222.000
H315626010 1/2-1923503851AN56AL5624.500
H3160280--2083804053AN60AL6030.200
H316430012-2264004256AN64AL6434.900
H316832012 1/2-2544405572AN68AL6849.500
H3172340--2594605875AN72AL7254.200
H3176360--2644906077AN76AL7661.700
H3180380--2725206282AN80AL8070.600
H3184400--3045407090AN84AL8484.200
H3188410--3075607090AN88AL88104.000
H3192430--3265807595AN92AL92116.000
H3196450--3356207595AN96AL96133.000
H31/500470--35663080100AN100AL100143.000

整組緊定套附螺母及華司或鎖定片

規格表中套筒內徑規格為 HE 為 HE3120

規格表中套筒內徑規格為 HA 為 HS3120

標示出 C1 尺寸套筒附鎖定裝置、尺寸參考規格圖



產品型號 : H32

型號d1
mm
L
mm
D3
mm
C
mm
C2)1
mm
鎖緊螺母
Lock Nuts
套筒華司
Lock Washers
重量
kg
H32602802402404053AN60AL6034.100
H32643002582585256AN64AL6439.300
H32683202882885572AN68AL6854.600
H32723402992995875AN72AL7260.200
H32763603103106077AN76AL7669.600
H32803803283286282AN80AL8081.000
H32844003523527090AN84AL8494.000
H32884103613617090AN88AL88118.000
H32924303823827595AN92AL92132.000
H32964503973977595AN96AL96152.000
H32/50047042842880100AN100AL100166.000

整組緊定套附螺母及華司或鎖定片

標示出 C1 尺寸套筒附鎖定裝置、尺寸參考規格圖



產品型號 : H39

型號d1
mm
L
mm
D3
mm
C
mm
C2)1
mm
鎖緊螺母
Lock Nuts
套筒華司
Lock Washers
and
Lock Plates
重量
kg
H39361608721029.5-ANL36AWL365.700
H39381708922030.5-ANL38AWL386.190
H39401809824031.5-ANL40AWL407.890
H3944200962603041ANL44ALL448.160
H39482201012903446ANL48ALL4810.700
H39522401163103446ANL52ALL5212.800
H39562601213303850ANL56ALL5614.800
H39602801403604254ANL60ALL6019.800
H39643001403804255ANL64ALL6421.000
H39683201444004558ANL64ALL6823.500
H39723401444204558ANL72ALL7224.500
H39763601644504862ANL76ALL7631.500
H39803801684705266ANL80ALL8035.000
H39844001684905266ANL84ALL8436.600
H39884101895206077ANL88ALL8857.300
H39924301895406077ANL92ALL9259.900
H39964502005606077ANL96ALL9664.900
H39/5004702085806885ANL100ALL10073.100

整組緊定套附螺母及華司或鎖定片

標示出 C1 尺寸套筒附鎖定裝置、尺寸參考規格圖

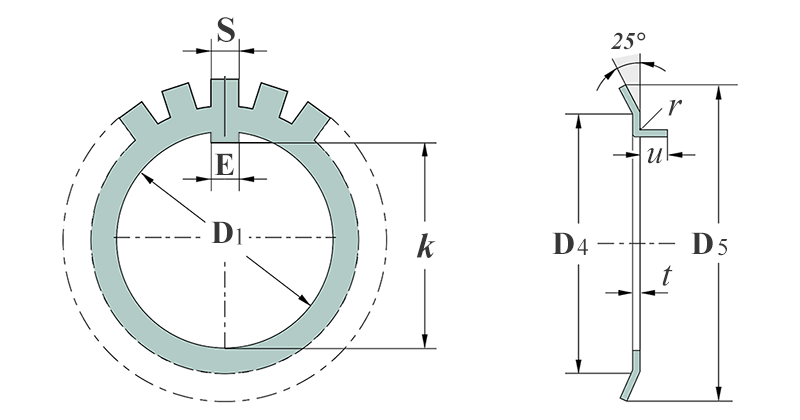

AW 系列套筒華司(太陽螺帽)

產品型號 : AW MB

型號D1
mm
k
mm
E
mm
t
mm
S
mm
D4
mm
D5
mm
r
mm
u
mm
太陽齒數
AW00108.531313210.529
AW011210.531317250.529
AW021513.5414212812.513
AW031715.5414243212.513
AW042018.5414263612.513
AW05252351.25324212.513
AW063027.551.25384912.513
AW073532.561.25445712.515
AW084037.561.26506212.515
AW094542.561.26566912.517
AW105047.561.26617412.517
AW115552.581.5767811417
AW126057.581.5773861.2417
AW136562.581.5779921.2419
AW147066.581.5885981.2419
AW157571.581.58901041.2419
AW168076.5101.88951121.2419
AW178581.5101.881021191.2419
AW189086.5101.8101081261.2419
AW199591.5101.8101131331.2419
AW2010096.5121.8101201421.2619
AW21105100.5121.8121261451.2619
AW22110105.5121.8121331541.2619
AW23115110.5122121371591.5619
AW24120115142121381641.5619
AW25125120142121481701.5619
AW26130125142121491751.5619
AW27135130142141601851.5619
AW28140135162141601921.5819
AW29145140162141712021.5819
AW30150145162141712051.5819
AW31155147.5162.5161822121.5819
AW32160154182.5161822171.5819
AW33165157.5182.5161932221.5819
AW34170164182.5161932321.5819
AW36180174202.5182032421.5819
AW38190184202.5182142521.5819
AW40200194202.5182262621.5819
AW44220213243.020250292--19
AW48240233243.020270312--19
AW52260253283.024300342--19
AW56280273283.024320362--19

AW00 ~ AW40 亦有生產不銹鋼材質 SUS304

AW 之尺寸規格適用於 MB


產品型號 : AWL MBL

型號D1
mm
k
mm
E
mm
t
mm
S
mm
D4
mm
D5
mm
r
mm
u
mm
太陽齒數
AWL24120115142121331551.5619
AWL26130125142121431651.5619
AWL28140135162141511751.5819
AWL30150145162141641901.5819
AWL32160154182.5161742001.5819
AWL34170164182.5161842101.5819
AWL36180174202.5181922201.5819
AWL38190184202.5182022301.5819
AWL40200194202.5182182401.5819

AWL24 ~ AWL40 亦有生產不銹鋼材質 SUS304

AWL 之尺寸規格適用於 MBL

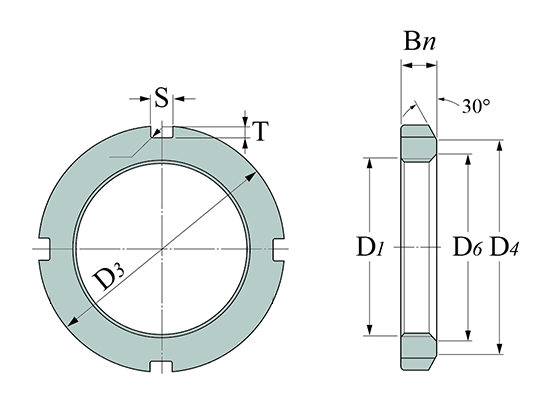

AN 系列鋼片螺帽 (軸承螺帽)

型號牙(d*p)D1D2ACBhH單重Kg
AN00M10×0.75180
-0.2
130
+0.2
14
(14.4)
0
-0.2
2
(1.8)
3+0.145.2+0.30.007
AN01M12×1220
-0.2
170
+0.2
18
(18.4)
0
-0.2
2
(1.8)
3+0.145.4+0.30.075
AN02M15×1250
-0.5
210
-0.5
21
(21.4)
0
-0.5
2
(1.8)
4+0.256.5+0.50.010
AN03M17×1280
-0.5
240
-0.5
24
(24.2)
0
-0.5
2
(1.9)
4+0.156.4+0.50.014
AN04M20×1320
-0.5
260
-0.5
28
(28.4)
0
-0.5
2
(1.8)
4+0.167.7+0.50.022
AN05M25×1.5380
-0.5
320
-0.5
340
-0.5
25+0.179.1+0.50.035
AN06M30×1.5450
-0.5
380
-0.5
410
-0.5
25+0.179.1+0.80.048
AN07M35×1.5520
-0.5
440
-0.5
480
-0.5
25+0.1810.2+0.80.075
AN08M40×1.5580
-0.5
500
-0.5
530
-0.5
2.56+0.1911.2+0.80.098
AN09M45×1.5650
-0.5
560
-0.5
600
-0.5
2.56+0.11012.5+1.00.14
AN10M50×1.5700
-0.5
610
-0.5
650
-0.5
2.56+0.11113.5+1.00.167
AN11M55×2750
-0.5
670
-0.5
690
-0.5
37+0.11113.5+1.00.17
AN12M60×2800
-0.5
730
-0.5
740
-0.5
37+0.11113.5+1.00.195
AN13M65×2850
-0.5
790
-0.5
790
-0.5
37+0.11215+1.50.224
AN14M70×2920
-0.5
850
-0.5
850
-0.5
3.58+0.11215+1.50.292
AN15M75×2980
-0.5
900
-0.5
910
-0.5
3.58+0.11315.8+1.50.33
AN16M80×21050
-0.5
950
-0.5
980
-0.5
3.58+0.11518.6+1.50.42
AN17M85×21100
-0.5
1020
-0.75
1030
-0.5
3.58+0.11619.2+1.50.505
AN18M90×21200
-0.5
1080 -0.751120
-0.5
410+0.31620.3+1.50.69
AN19M95×21250
-0.5
1130 -0.751170
-0.5
410+0.31721.3+1.50.755
AN20M100×21300
-0.5
1200 -0.751220
-0.5
410+0.31822.3+1.50.855
