MUCF 方形帶座軸承
Stainless Steel 不銹鋼連座軸承

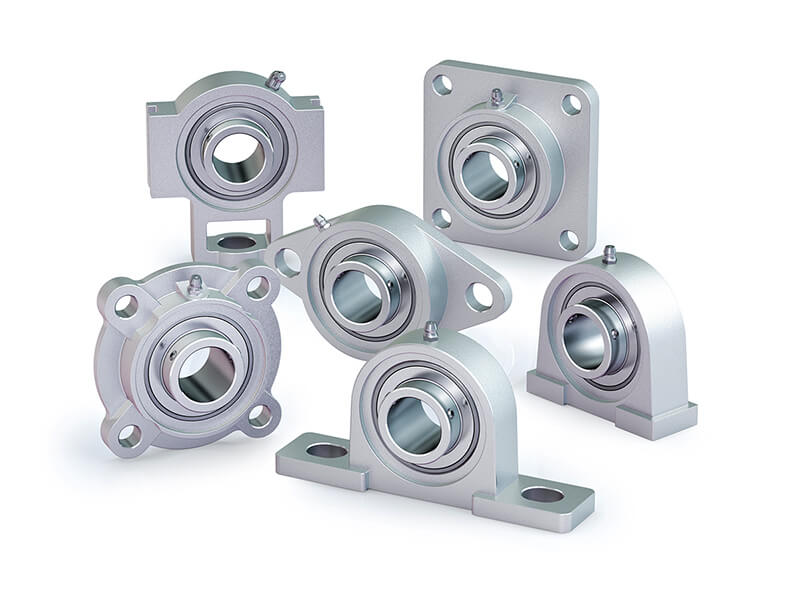

MUCF200VN,Y 不銹鋼帶座軸承的材質與鑄鐵不同，但不銹鋼帶座軸承插入式軸承座的結構與一般鑄鐵軸承座系列完全相同，外球面滾珠連座軸承並具有自動調心對中、密封元件和 UNF 油嘴補油機構。軸承座採用一體化構造具抗腐蝕性、不容易生鏽、加裝防塵蓋，可增強防水、防塵、防污、防油保護等級。

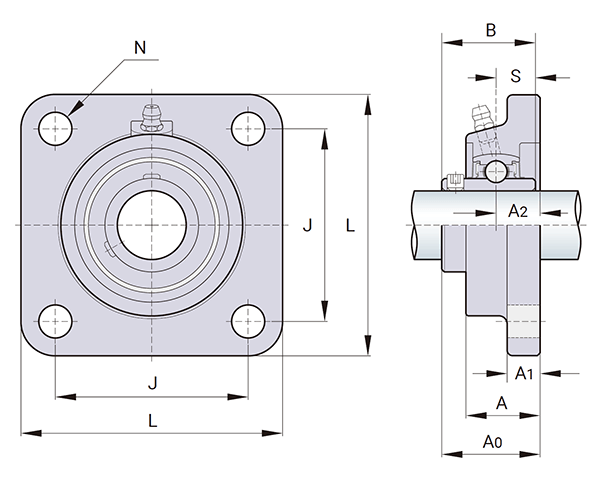

UCF 不銹鋼帶座軸承尺寸表
| 軸徑 (mm) | 帶座軸承型號 | 型式 | 軸承箱主要尺寸 (mm) | 螺絲 尺寸 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| L | A | J | N | A1 | A2 | A0 | B | S | A4 | A6 | ||||
| 12 | MUCF 201 | VN,Y | 86 | 25.5 | 64 | 12 | 11 | 15 | 33.3 | 31 | 12.7 | 43 | 8 | M10 |
| 15 | MUCF 202 | VN,Y | 86 | 25.5 | 64 | 12 | 11 | 15 | 33.3 | 31 | 12.7 | 43 | 8 | M10 |
| 17 | MUCF 203 | VN,Y | 86 | 25.5 | 64 | 12 | 11 | 15 | 33.3 | 31 | 12.7 | 43 | 8 | M10 |
| 20 | MUCF 204 | VN,Y | 86 | 25.5 | 64 | 12 | 11 | 15 | 33.3 | 31 | 12.7 | 43 | 8 | M10 |
| 25 | MUCF 205 | VN,Y | 95 | 27 | 70 | 12 | 12 | 16 | 35.8 | 34.1 | 14.3 | 47 | 9 | M10 |
| 30 | MUCF 206 | VN,Y | 108 | 31 | 83 | 12 | 12.5 | 18 | 40.2 | 38.1 | 15.9 | 51 | 9 | M10 |
| 35 | MUCF 207 | VN,Y | 117 | 34 | 92 | 14 | 10.5 | 19 | 44.4 | 42.9 | 17.5 | 54 | 8 | M12 |
| 40 | MUCF 208 | VN,Y | 130 | 36 | 102 | 16 | 11 | 21 | 51.2 | 49.2 | 19 | 62 | 9 | M14 |
| 45 | MUCF 209 | VN,Y | 137 | 38 | 105 | 16 | 13 | 22 | 52.2 | 49.2 | 19 | 63 | 10 | M14 |
| 50 | MUCF 210 | VN,Y | 143 | 40 | 111 | 16 | 13 | 22 | 54.6 | 51.6 | 19 | 66 | 9 | M14 |
| 55 | MUCF 211 | V,Y | 162 | 43 | 130 | 19 | 16 | 25 | 58.4 | 55.6 | 22.2 | - | - | M16 |
| 60 | MUCF 212 | V,Y | 175 | 48 | 143 | 19 | 16.5 | 29 | 68.7 | 65.1 | 25.4 | - | - | M16 |
| 65 | MUCF 213 | V,Y | 187 | 50 | 149 | 19 | 16.5 | 30 | 69.7 | 65.1 | 25.4 | - | - | M16 |
不銹鋼帶座軸承採用 1/4"-28 UNF-2A 油嘴、型式標稱：帶蓋軸承單元型式、一側軸端橡膠密封蓋、兩側軸端橡膠密封蓋。
